Jacket Stainless steel Water Cooling Tank

A cooling tank is an industrial container used to rapidly lower and maintain the temperature of liquids, gases, or materials.

PRODUCT DESCRIPTION

Description

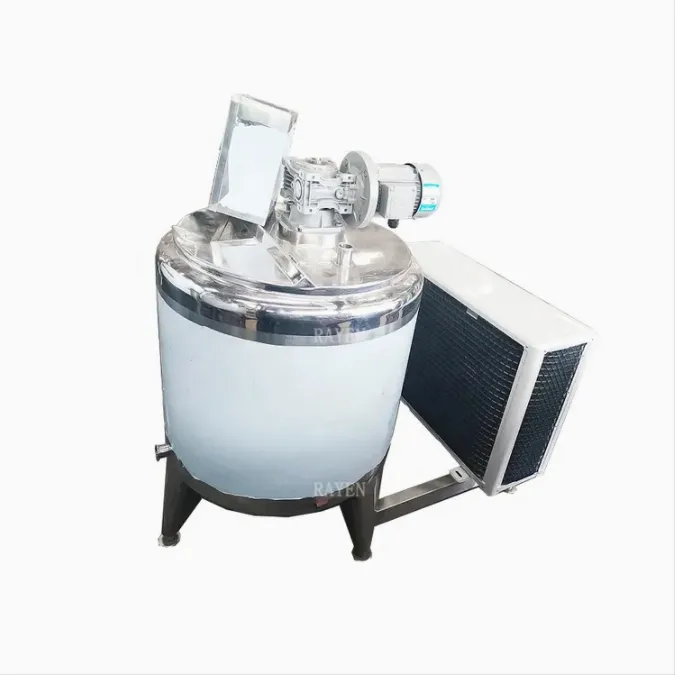

China stainless steel cooling tank water jacket vessel
China stainless steel cooling tank water jacket vessel can be used as liquid stostainless steel steam jacket vessel yogurt fermentation double jacketed tankge tank, liquid mixing tank ,liquid heating or cooling tank and so on.It is suitable for food, dairy products, fruit juice beverage, pharmaceutical and chemical and biological engineering.

Finish:Mirror or Matt Polish; Ra<0.4um
1. Material:Stainless steel, austenitic stainless steel 304, 316L etc, with insulating material or not
2. Tank shell thickness:3mm at least (according to the design or your required)
3. Design work pressure (MPa):-0.1~~1.6MPa (According to the China national standard, breakthroughs in the foregoing measurements are allowed in special cases)
4. Design work temperature:-4~~+150C
5. General accessories(If required):Manhole, CIP, respirator, sight glass, mixing(Top side or bottom)
Certification: CE  ISO9001:2000.

Have different kinds of agitators:
1, Bottom magnetic agitator with propeller impeller, speed from 50-400rpm or 50-800rpm. this kind of agitator is mixing thin viscosity , such as eyedrop, injection, CIP liquid, water, etc.
2, Top mechancial agitator with propeller impeller, speed at fix 71rpm or adjustable 20-200rpm or special requirement. this kind of agitator is mixing syrup, injection, blood, oral liquid, culture media, etc.
3, Top mechanical agitator with anchor or frame impeller, speed is from 10-70rpm. it is mixing higher viscosity , such as sediment or viscosity oral liquid, etc.
4, Top emusification homogenizer, speed max 2900rpm for small vessel, 1480rpm for bigger tank. this kind of agitator is mixing most high viscosity , such as suspension, oil, fat emulsification , etc.
5, Bottom emusification homogenizer, speed max 2900rpm for small vessel, 1480rpm for bigger tank. this kind of agitator is mixing most high viscosity , such as suspension, oil, fat emulsification , etc.

Application

Common Uses

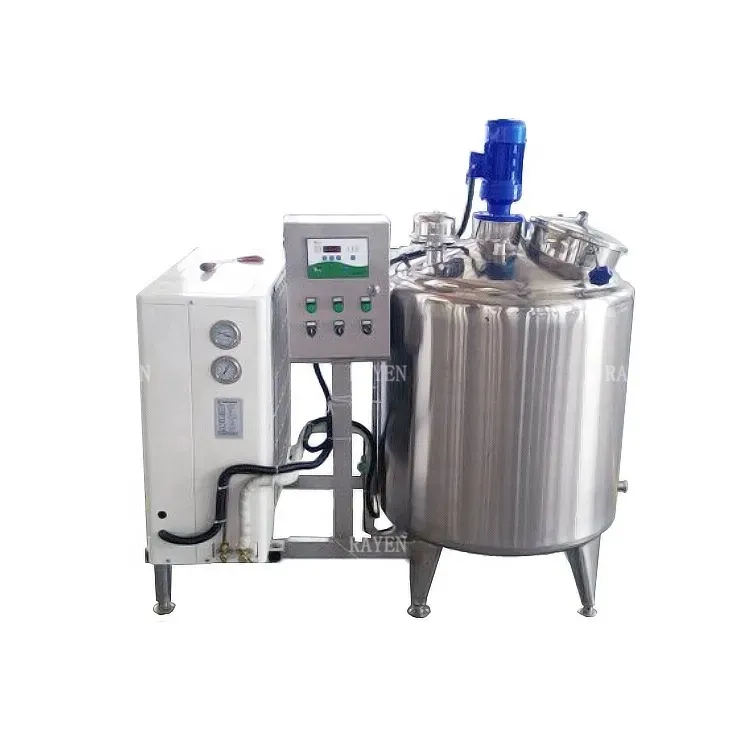

· Dairy Farming: Milk Cooling Tanks lower fresh milk quickly from about 35°C down to 4°C to stop bacteria growth.

· Plastics Manufacturing: Water cooling tanks use flood or spray methods to cool extruded plastic pipes and tubes.

· Food and Beverage: Tanks cool down batches of liquids or dough during processing, or manage wort temperatures in breweries.

· Data Centers: Immersion cooling tanks submerge computer servers in dielectric fluid to manage high heat loads efficiently.

· Trade Waste: Cooling and straining tanks hold hot wastewater so it cools safely before entering public sewer systems.

Complete set of Supporting Equipment

FAQ

Q: How about payment term, payment safety and delivery time?

A: We accept 40% deposit, balance before shipment. And Irrevocable L/C at sight.Delivery time is 7 to 30 days. It is according to order quantity.

Q: How could we confirm the products?

A: Our professional engineers will follow up all the designs and ajustments according to your requirement.OEM and ODM available.

Q: What services can we provide?

A:Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU,Express Delivery；

Accepted Payment Currency:USD,EUR,CNY;

Accepted Payment Type: T/T,L/C,Credit Cardl,Western Union,Alipay;

Q: How can I know your machine works well?

A: Before delivery, we shall test the machine working condition for you.

Q: What's your MOQ?

A: 1 set.
