Cold Liquor Tank for Brewery

The Aelt cold-liquor tank is designed to store cold water for the brewing process, commonly referred to as “cold liquor”.

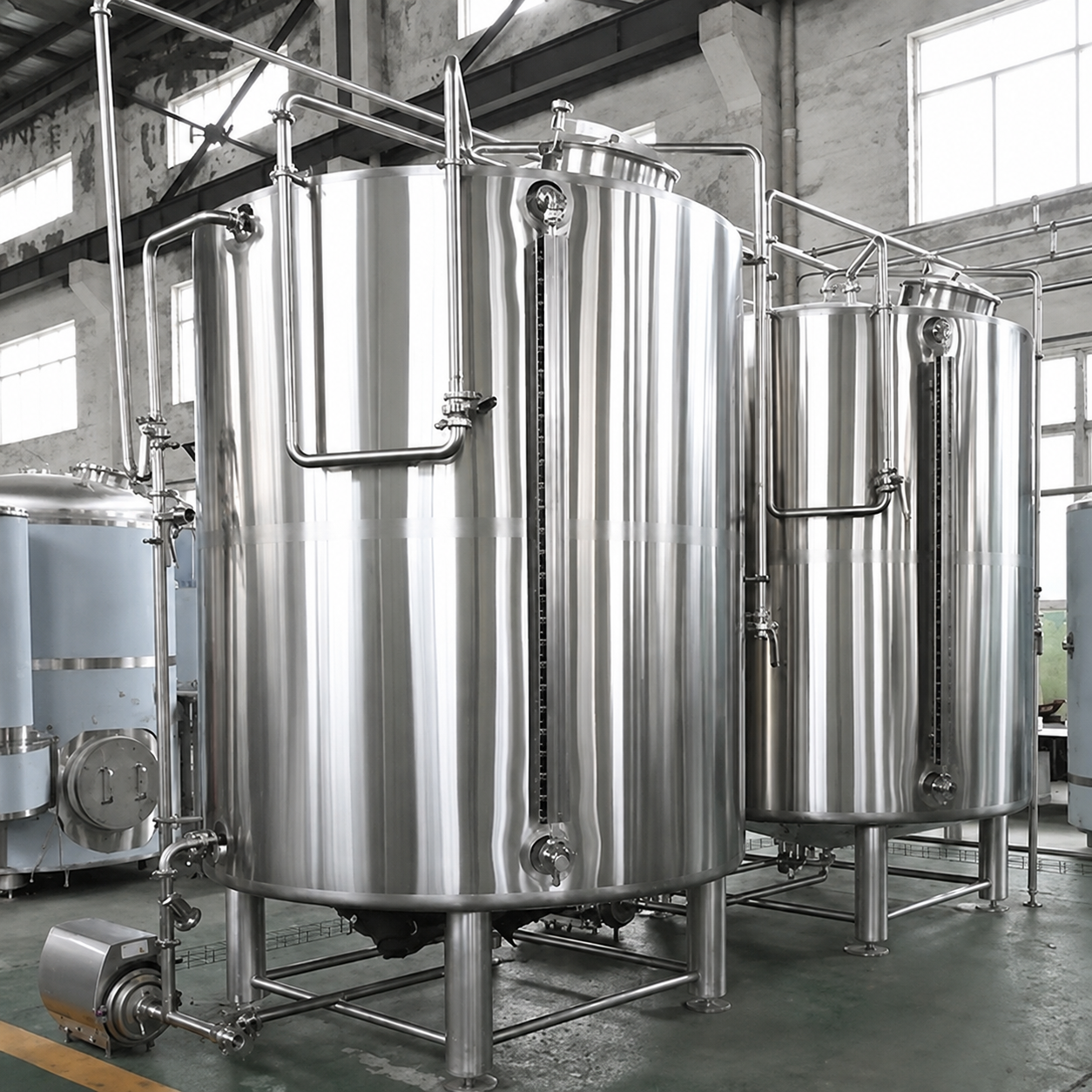

Our cold-liquor tanks are constructed from SUS304 or 316L Stainless steel and fitted with insulated dimple jackets to maintain low water temperature. These water tanks can be connected to a refrigeration system to keep the water at a consistently low temperature.

PRODUCT DESCRIPTION

Description

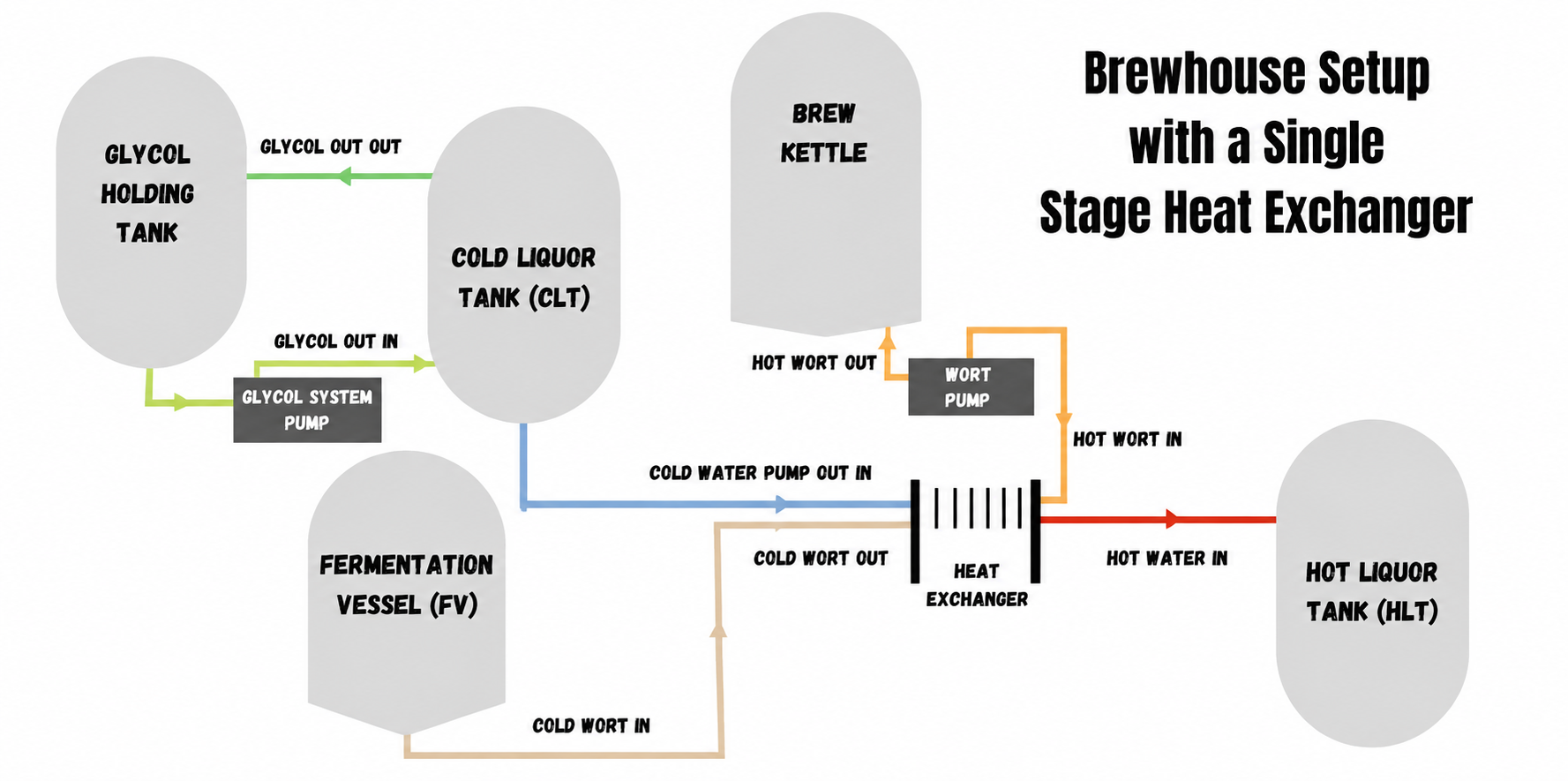

A cold water tank, also referred to as a Cold Liquor Tank in breweries, is a buffer tank for storing cold water. After wort boiling, the stored cold water is used by the wort chiller to cool hot wort down to fermentable temperature. This cold-water storage tank can be a simple single-jacketed vessel inside a cold room, or a double-jacketed cold water tank or insulated cold water tank.

Specifications

Material Stainless Steel SUS 304, 316, 316L

Insulation Polyurethane, thickness: 80 mm

Shell Thickness Inner shell: 3 mm; Outer shell: 2 mm

Internal Finishing Pickling and passivation

Cooling Jacket Dimple-type cooling jacket

Cooling Medium 35% ethylene-glycol-water solution, -5 ℃

Jacket Working Pressure ＜2 bar

Tank Working Pressure Atmospheric pressure

Temperature Control PT100

Ethylene Glycol Tank

The ethylene glycol tank is a vessel for storing and circulating ethylene glycol solution during beer brewing. The glycol solution serves to cool beer throughout fermentation and storage processes. It is also known as coolant storage tank or chiller tank.

Advantages

1. Brand-new and high-quality configuration.

2. Leading imported brands are adopted for auxiliary systems.

3. Auxiliary systems feature long service life, high performance, superior quality and low loss.

4. All storage tanks are made of certified stainless steel (304, 316).

5. Electrical components comply with export standards including UL, cUL, CE and PED.

6. Voltage and frequency of auxiliary systems fully match your local standards.

7. Adopts state-of-the-art manufacturing processes.

8. Stable quality, outstanding performance and strict quality control.

9. All equipment joints are 100% argon-arc welded with mirror polishing finish.

10. CAD layout drawing, installation assistance, on-site assembly and operator training available.

FAQ

Q: How about payment term, payment safety and delivery time?

A: We accept 40% deposit, balance before shipment. And Irrevocable L/C at sight.Delivery time is 7 to 30 days. It is according to order quantity.

Q: How could we confirm the products?

A: Our professional engineers will follow up all the designs and ajustments according to your requirement.OEM and ODM available.

Q: What services can we provide?

A:Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU,Express Delivery；

Accepted Payment Currency:USD,EUR,CNY;

Accepted Payment Type: T/T,L/C,Credit Cardl,Western Union,Alipay;

Q: How can I know your machine works well?

A: Before delivery, we shall test the machine working condition for you.

Q: What's your MOQ?

A: 1 set.
